DETAILS
TITLE – Southend University Hospital, Essex
SERVICE – Digital 3D Revit Measured Building & 2D DWG Topographical Survey
METHOD – 3D Laser Scan, Total Station, GPS
DELIVERABLES – 3D Revit LOD 2 Model Providing Floors, Roof & Elevations. 2D DWG Topographical Site Plan

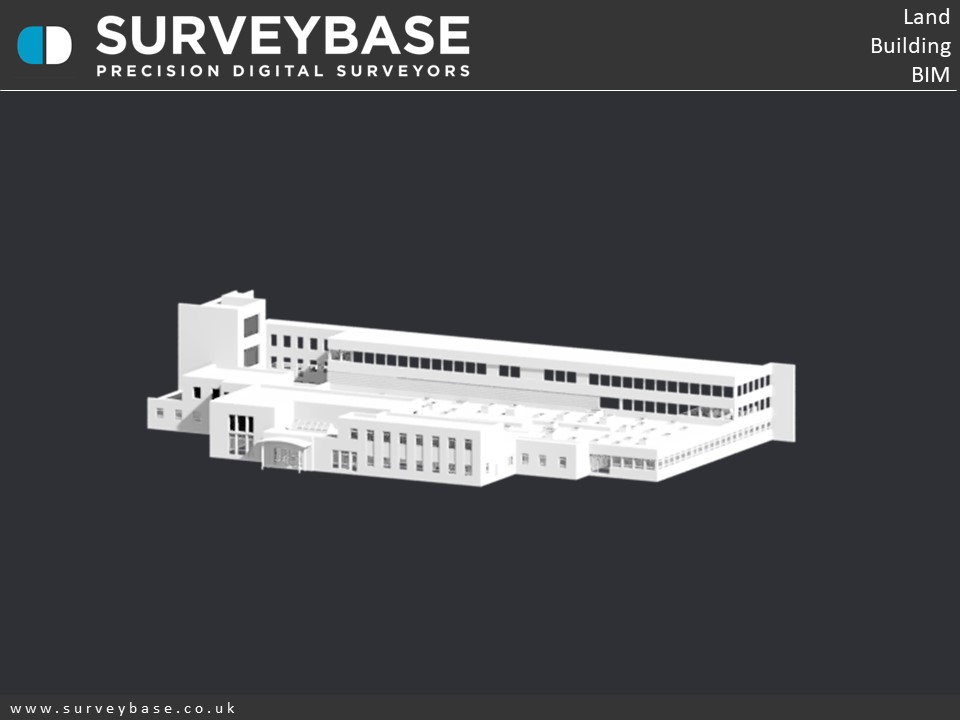

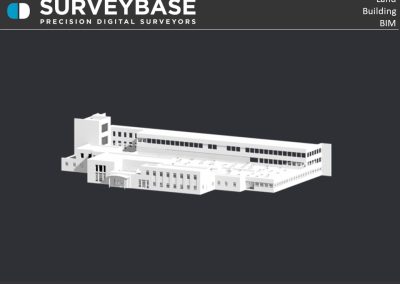

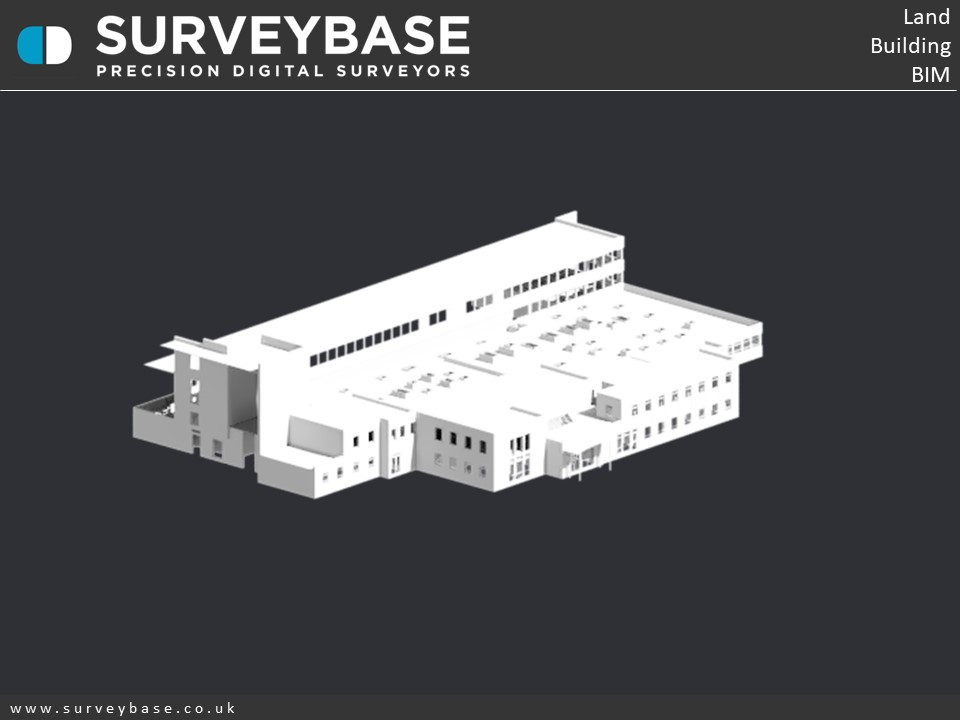

model

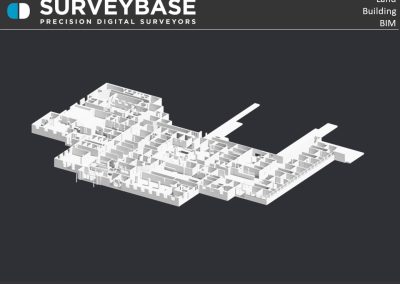

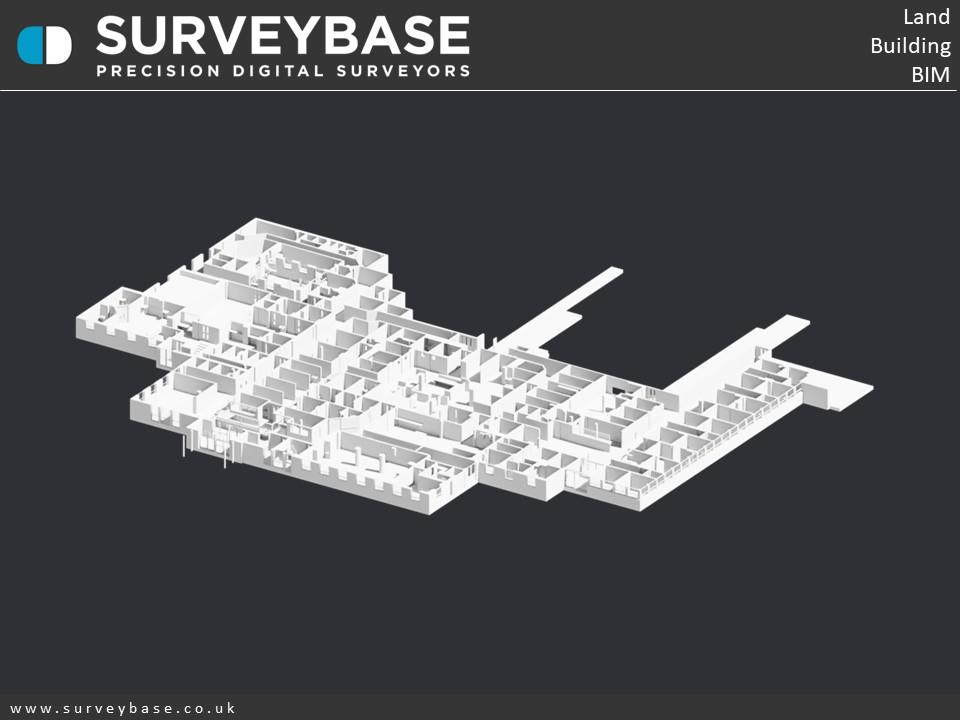

model 2
model 3

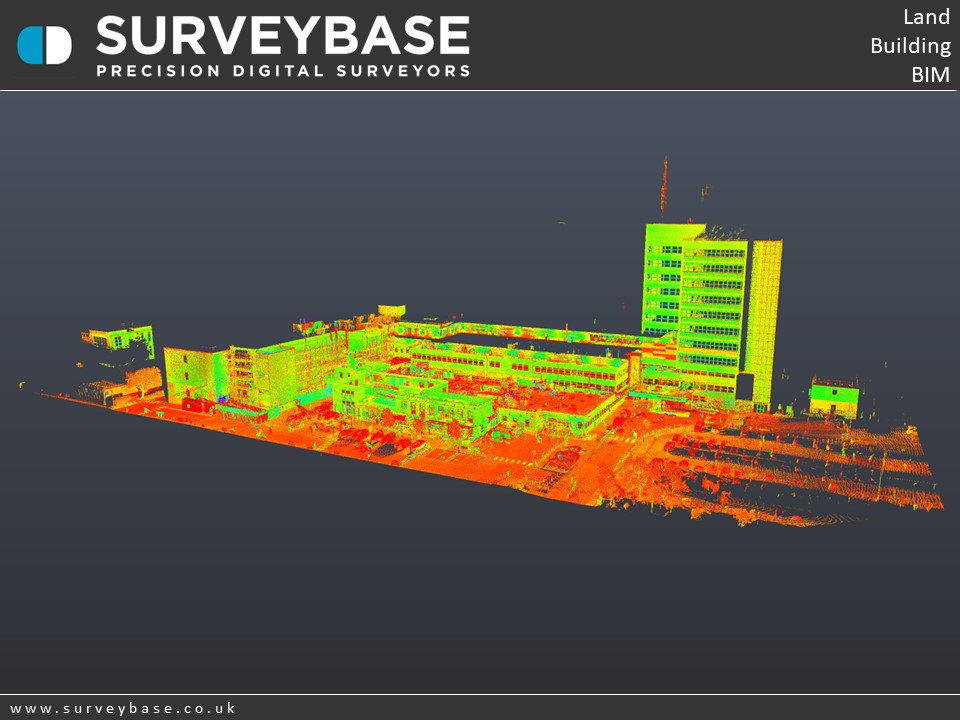

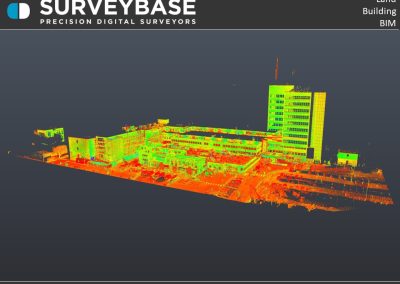

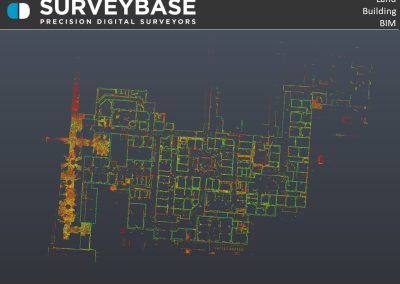

Pointcloud 1

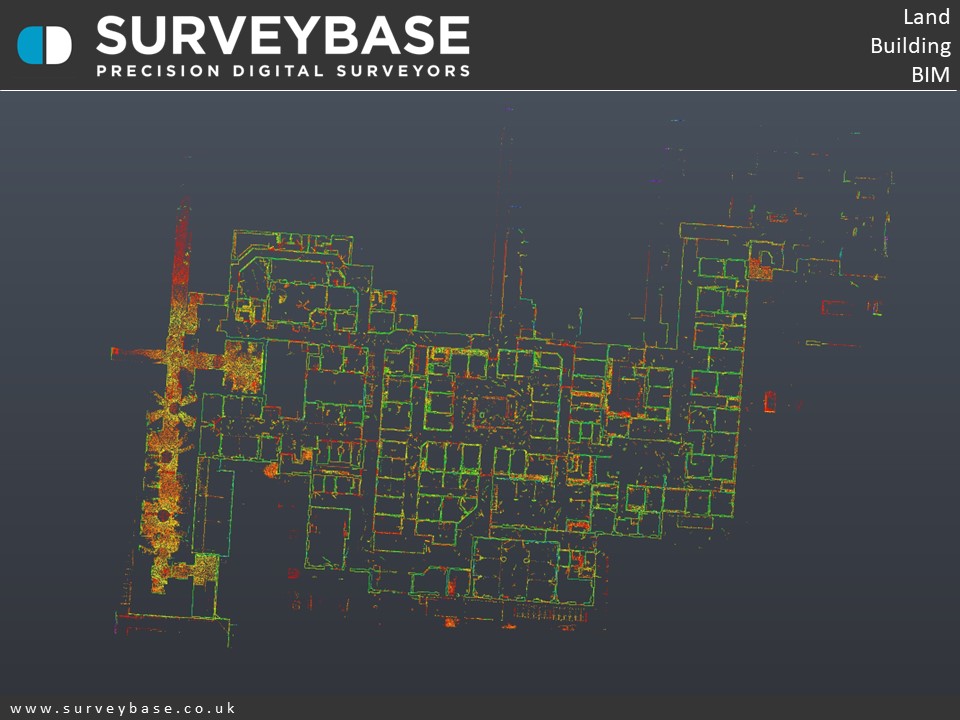

Pointcloud 2

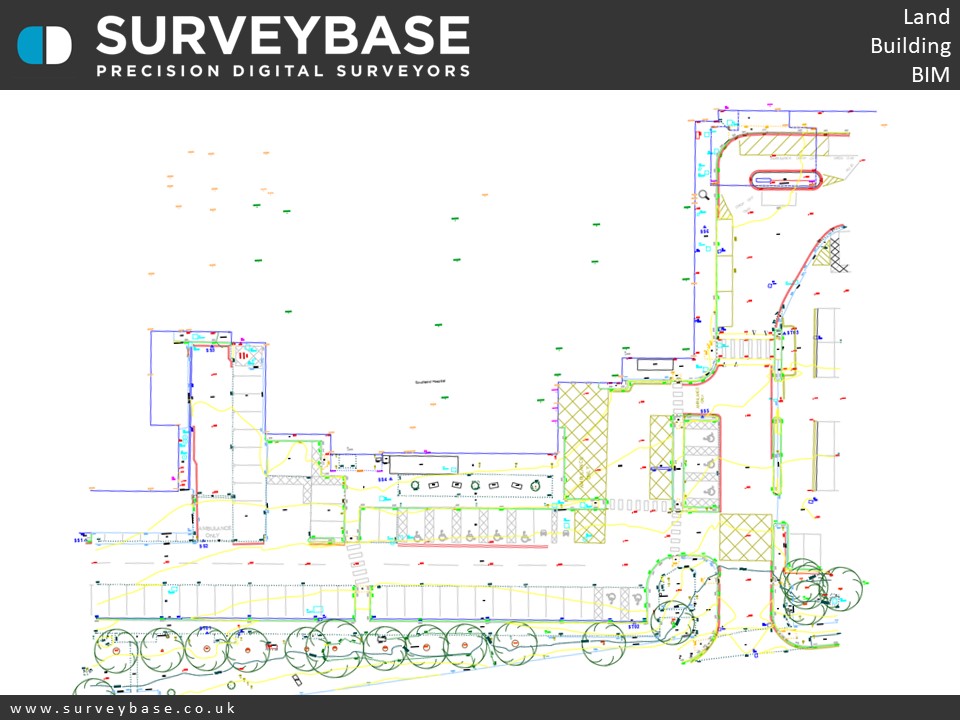

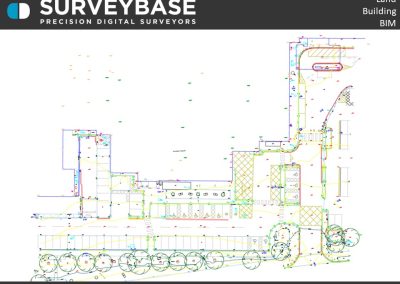

2d site plan
SUMMARY
Our recent Digital 3D Revit Measured Building & 2D DWG Topographical Survey of the A&E Department at Southend University Hospital, Essex.
Southend University Hospital opened in 1888, and now has over 700 beds. The hospital also serves as a teaching hospital for medical students from Barts and The London School of Medicine and Dentistry.
The survey was undertaken with a Leica RTC360 Laser Scanner, Trimble Total Station & GPS. The output included a precision 3D Revit LOD 2 commercial hospital model of all floors, roof & elevations including a 2D DWG Topographical Site Plan.
If you would like to find out more about our Topographical, Measured Building, or Scan To 3D Revit survey services please visit the Surveybase website or call your local office;
Bristol 01225 314370, Reading 0118 2072508, London 02039 066892 or Cambridge 01223 632613.
To obtain a quotation please email your brief to Quote@surveybase.co.uk or use our online quotation portal; Fast Quote.
Surveybase Limited are a precision digital surveying practice working on residential and commercial developments across the South of The U.K.
