DETAILS
TITLE – St Columba’s Church Of Scotland, London
SERVICE – 2D Topographical Survey, Heritage Measured Building Survey
METHOD – Total Station, 3D Laser Scan, GPS
SPECIFICATION – Level Of Detail – L3 Heritage
DELIVERABLES – 2D Site Plan, 2D Floor Plans, Roof Plan, Elevations, Sectional Elevations

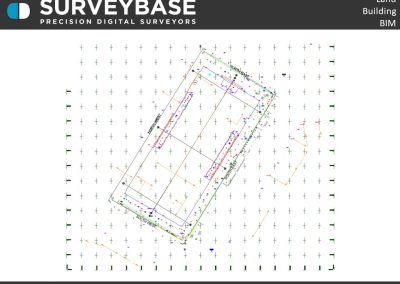

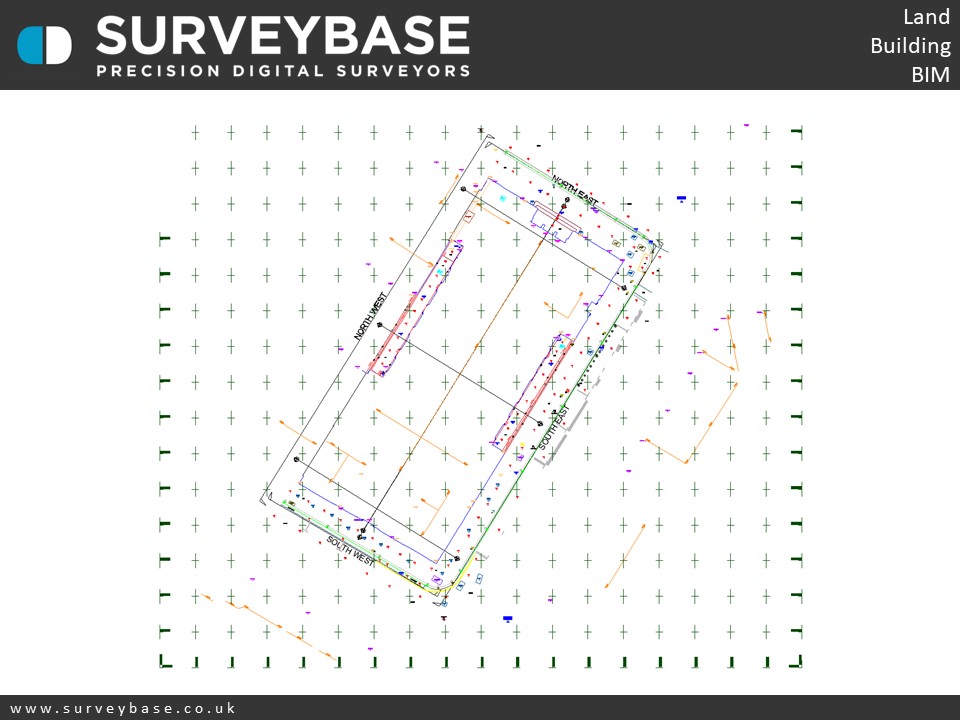

TOPO

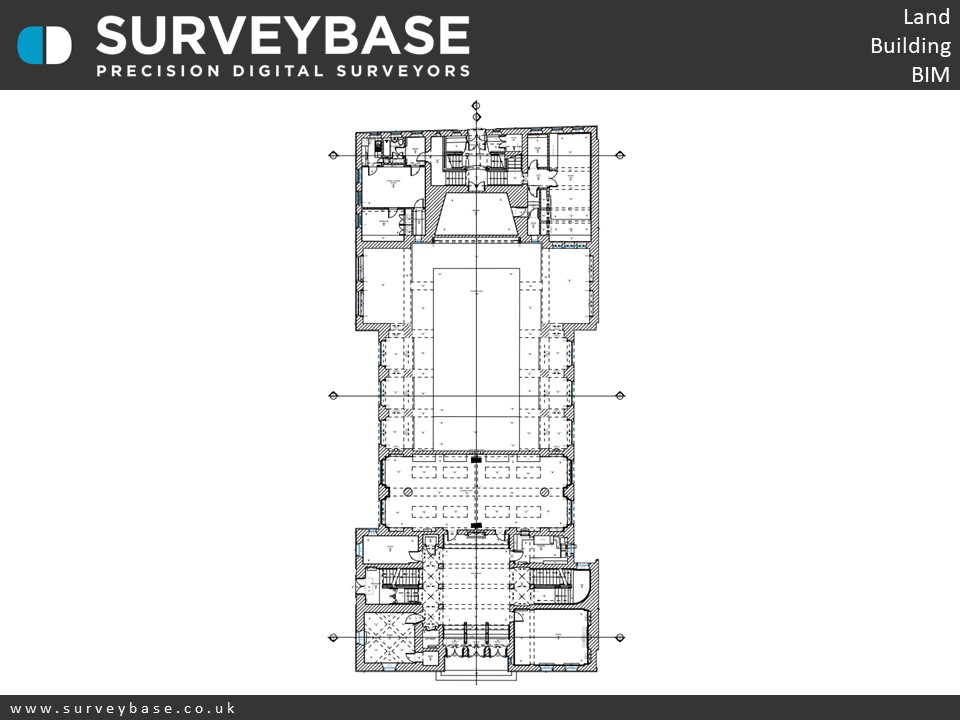

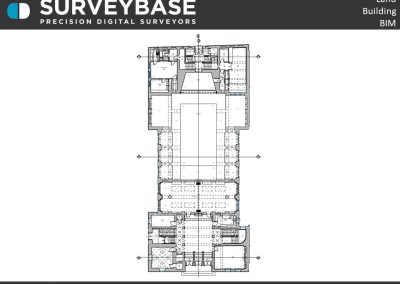

GROUND FLOOR PLAN

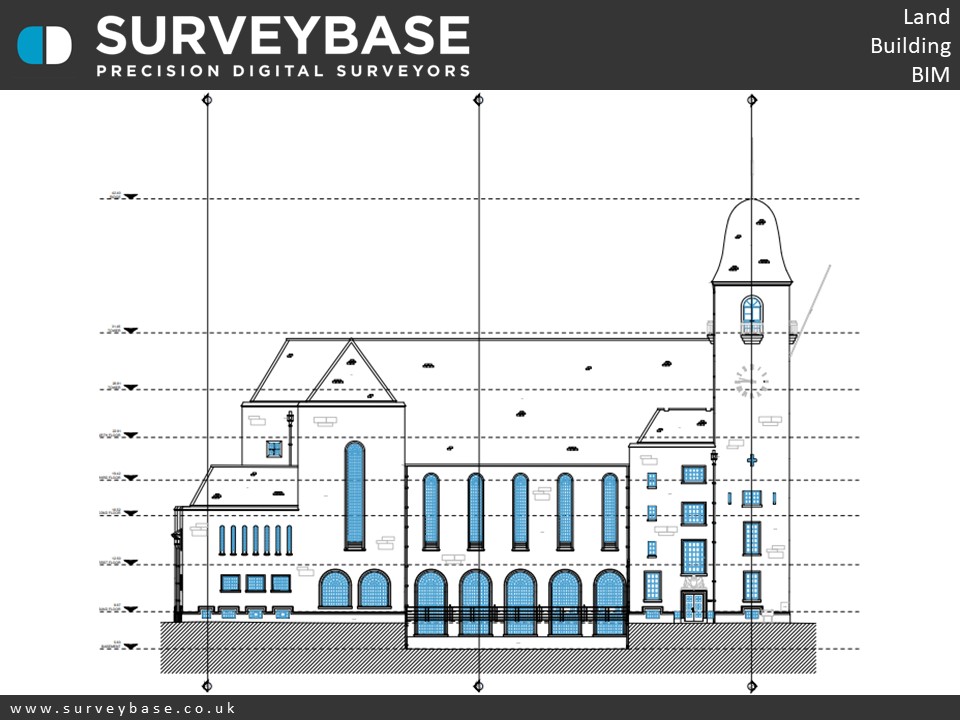

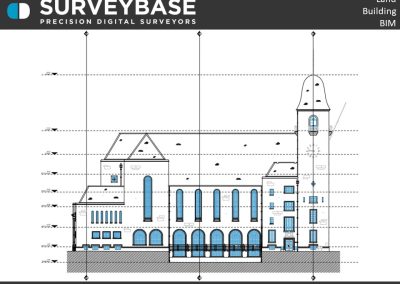

ELEVATION

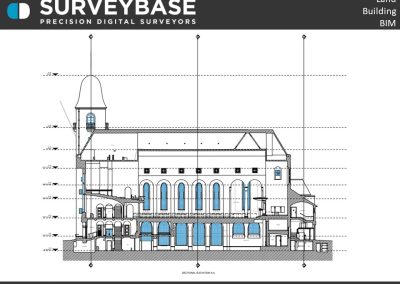

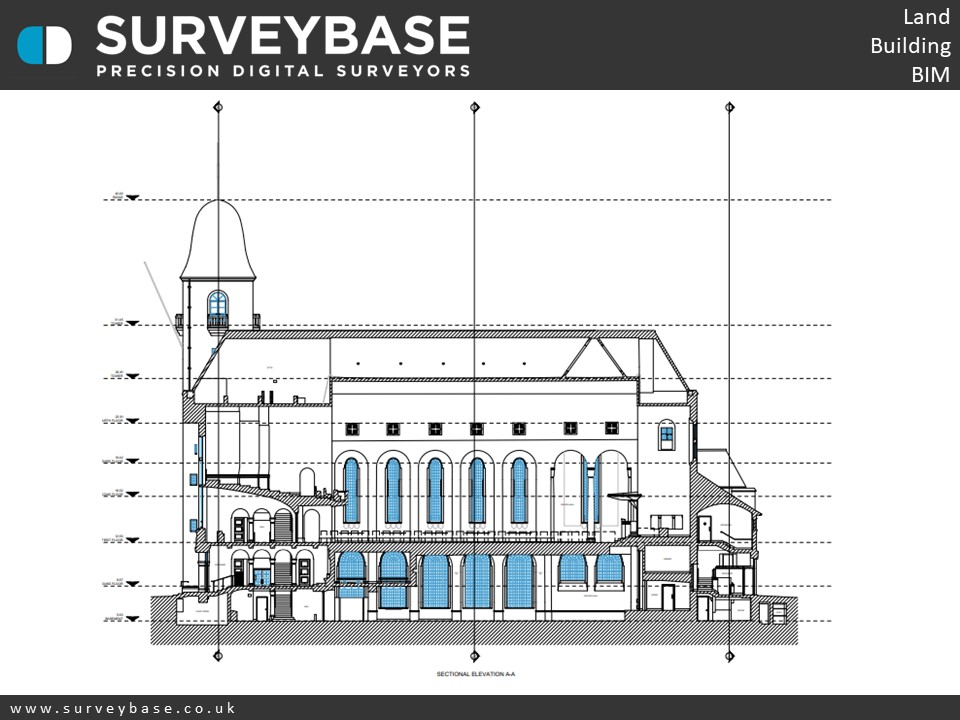

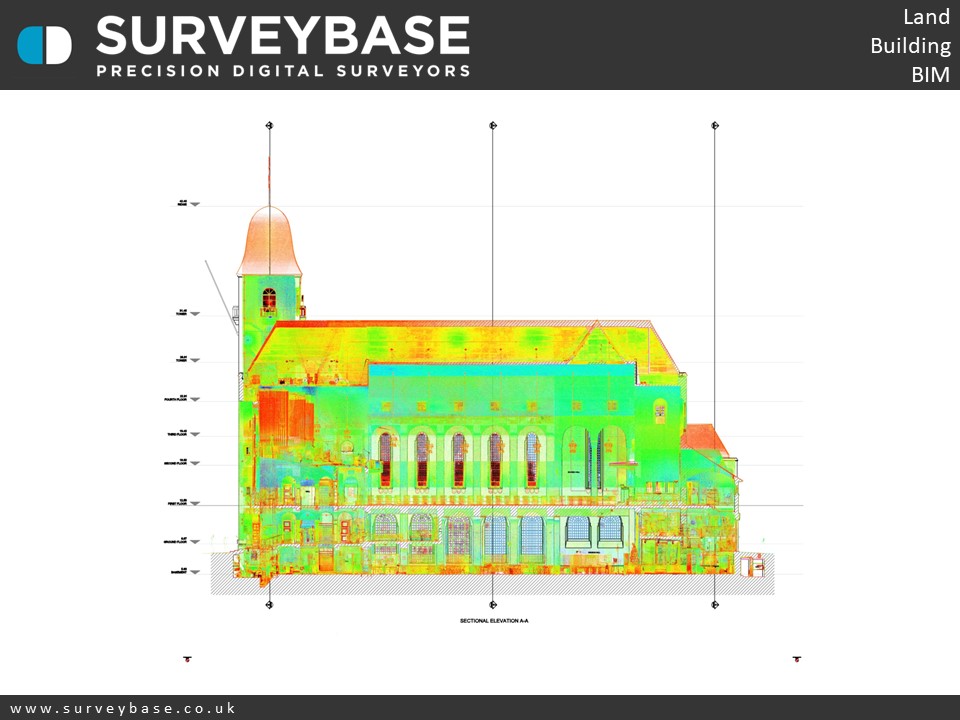

SECTIONAL ELEVATION
SUMMARY
The digital Heritage Topographical & Measured Building Survey of St Columba’s Church Of Scotland, London.
St Columba’s Church Of Scotland was originally built in 1884, but was sadly destroyed in the Blitz and rebuilt in 1955. This Grade II listed building is one of the two London congregations of the Church of Scotland.
The survey was undertaken with a Leica RTC360 Laser Scanner, Trimble Total Station & GPS. The output included precision 2D AutoCAD Topographical Plan With X,Y,Z 3D Points, Floor Plans, Roof Plan, Elevations & Sectional Elevations.
If you would like to find out more about our Topographical, Measured Building, or Scan To 3D Revit survey services please visit the Surveybase website or call your local office; Bristol 01225 314370, Reading 0118 2072508, London 02039 066892 or Cambridge 01223 632613.
To obtain a quotation please email your brief to Quote@surveybase.co.uk or use our online quotation portal; Fast Quote.
Surveybase Limited are a precision digital surveying practice working on residential and commercial developments across the South of The U.K.

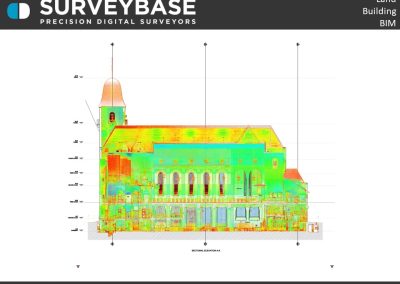

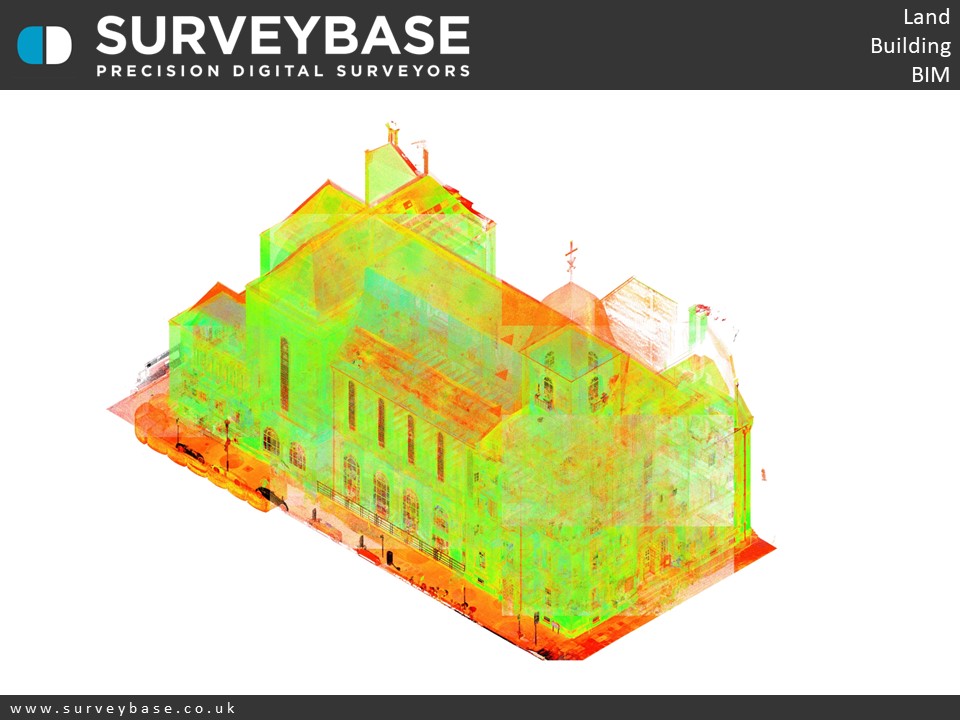

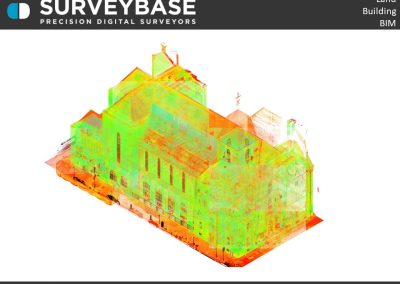

POINTCLOUD 1
