DETAILS
TITLE – Whittington Hospital
SERVICE – Topographical and Utility Survey
METHOD –3D Laser Scan, Total Station
DELIVERABLES – Topographical Plan, Utility Plan
SUMMARY
The Topographical and Utility Survey of Whittington Hospital, London.
Whittington Hospital is an excellent example of our Topographical and Utility services coming together to deliver a complex survey of a major public healthcare site.
Surveybase Limited was appointed following a competitive tender by an international engineering consultancy working on behalf of the NHS. Our brief included the detailed topographical survey and mapping of buried utility services. Working within this busy London hospital was not an easy challenge, but with renowned dedication and professionalism we were able to complete the work safely, on time to trusted standards of patient care and survey precision.
As with all Utility surveys, the GPR detection was undertaken by an approved consultant. Surveybase controlled the site operation and ensured precision coordination of the survey data. This approach exemplifies the benefits of deploying specialist surveyors under a single managed solution.

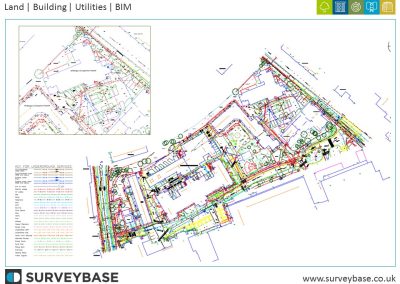

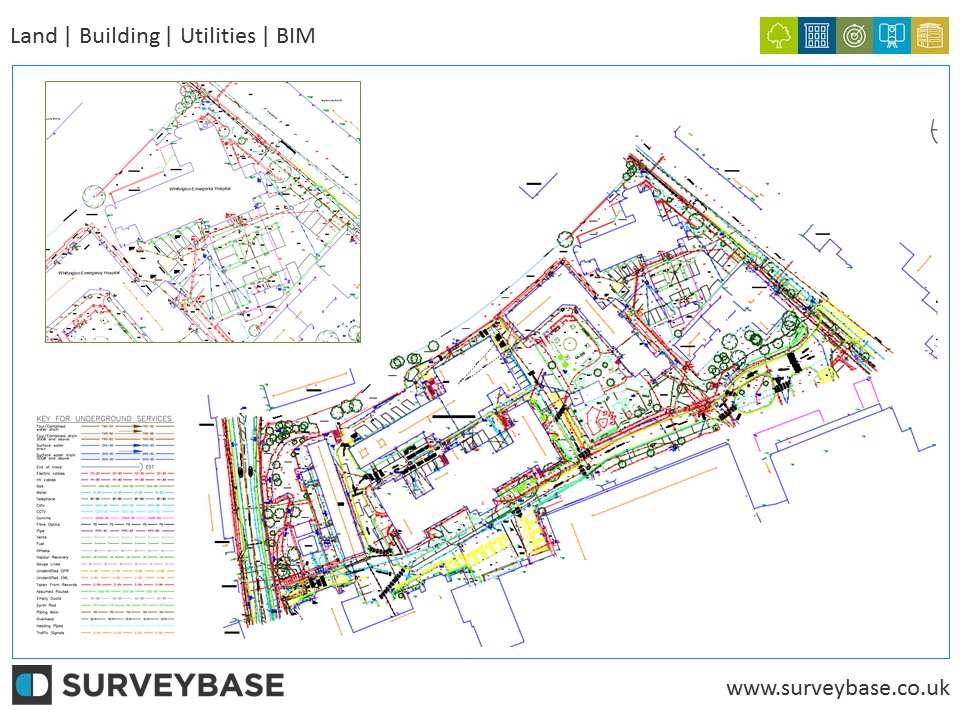

The complexity of the utility plan helps to illustrate the many services that run beneath an operational hospital. Utility surveys are a vital stage in design and construction, providing critical information on infrastructure and serving to protect contractors during excavation.
This survey was delivered inline with PAS128 procedures beginning with the desktop research of utility records and extending through site verification, inspection, and post survey consultancy.

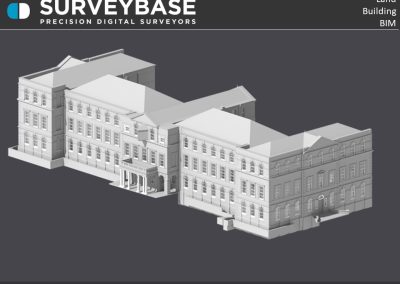

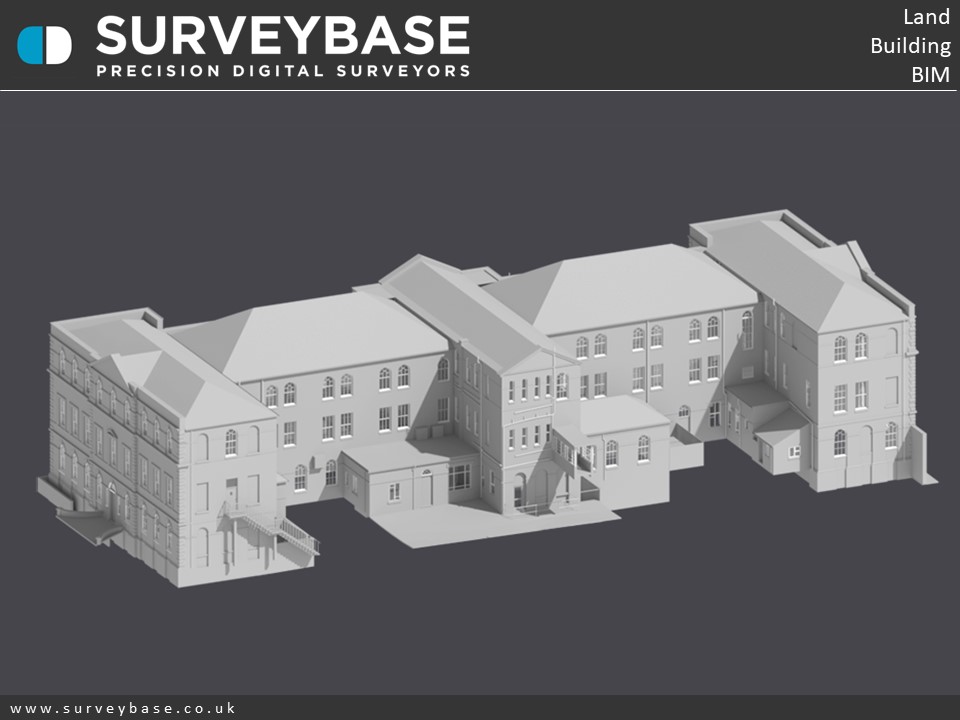

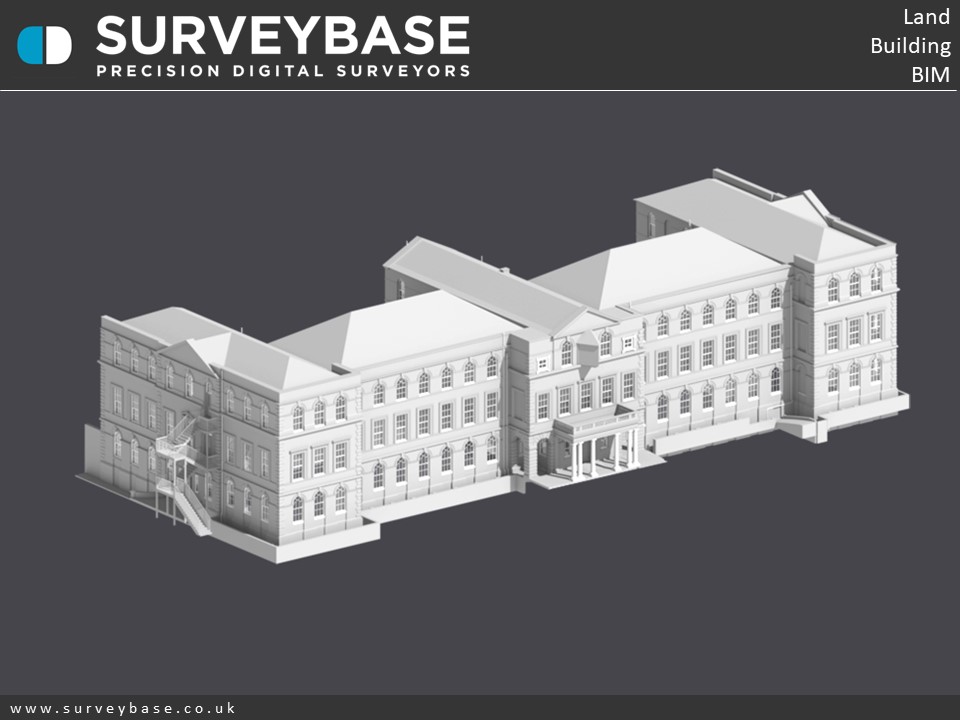

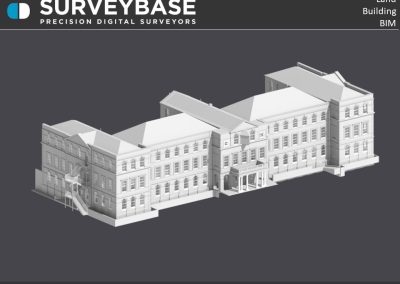

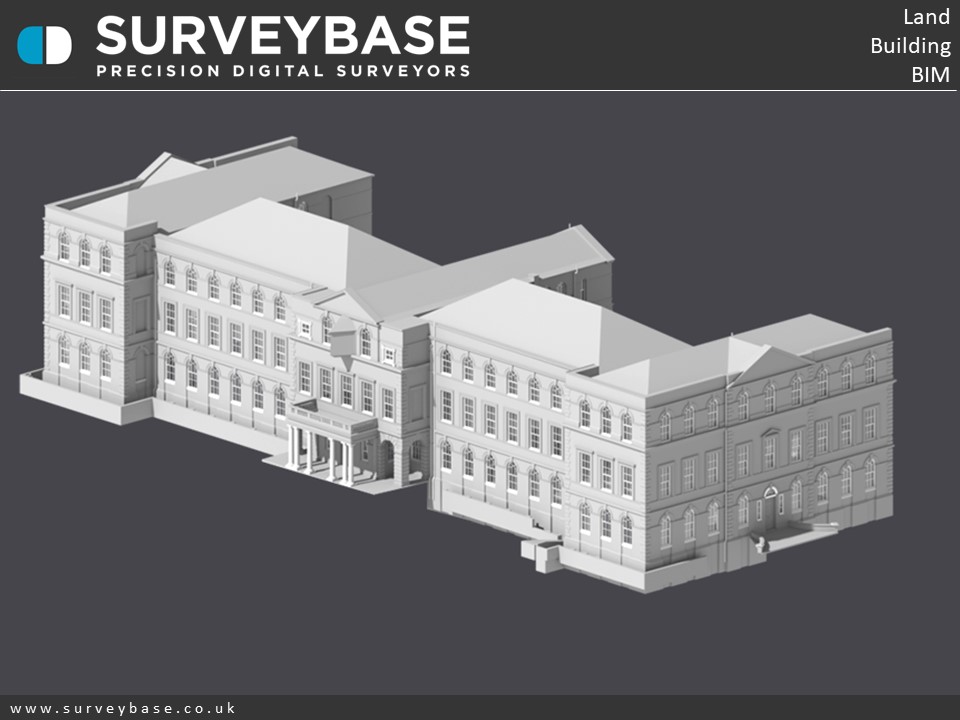

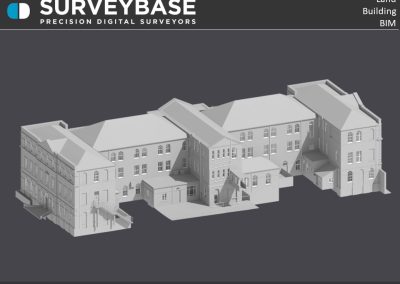

The success of the survey led to a further survey commission, this time concerning the main hospital building. The client wanted a detailed 3D model of the facades to support an extension proposal. The building was laser scanned using world leading Leica RTC360 instruments. The images of the model speak for themselves, and we are pleased to confirm that our client was delighted with the service.
